What Are The Differences Between Color And Black-and-White Copier Parts?

Oct 17, 2026

Many overseas service engineers and parts purchasers mistakenly believe that as long as the brand is the same, copier parts such as toner cartridges, drum units, developer units, transfer belt units, and fuser units can be used interchangeably across different models. In reality, there are significant differences between color and black-and-white copiers in terms of imaging principles and component structures. Drawing on years of experience in manufacturing parts for both color and black-and-white copiers, Dongguan Aige Technology breaks down the differences and limits of compatibility between the two types of machines.


DOBQ-6009 Transfer Belt Unit For Ricoh IM C2000 IM C2500 IM C3000 IM C3500 IM C4500 IM C6000
I. The Transfer Belt Unit Is a Core Component Exclusive to Color Copiers and Is Not Compatible with Black-and-White Copiers

Color copiers rely on the Transfer Belt Unit to achieve layer-by-layer overlay and transfer of cyan, magenta, yellow, and black toner. Its surface coating, tension structure, and drive mechanism are all designed for four-color overprinting precision. Most black-and-white copiers do not have a Transfer Belt Unit and instead use a transfer roller to complete monochrome transfer. Therefore, the Transfer Belt Unit is completely incompatible with black-and-white copier parts; forced installation will result in misalignment of color registration, color banding, or even jamming of the drive mechanism.

C-EXV28 GPR30 NPG45 Toner Cartridge For Canon ColorIR-AC5045I/5051/5250/5255/5355/5330/5340/5350
C-EXV28 GPR30 NPG45 Toner Cartridge For Canon ColorIR-AC5045I/5051/5250/5255/5355/5330/5340/5350
II. Color Toner Cartridges and Developer Units: Special Requirements for Four-Color Development

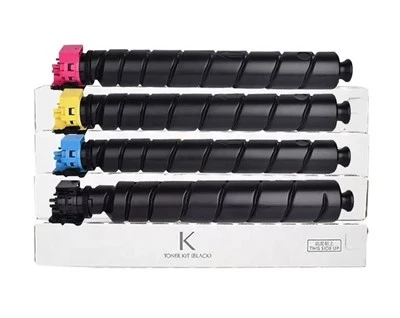

Color copier Toner Cartridges are configured separately for cyan, magenta, yellow, and black, as each color of toner has different charge characteristics; The Developer Unit must also be matched to the carrier ratio of each color's toner, and a single device often contains multiple developer assemblies. In contrast, monochrome printer Toner Cartridges and Developer Units are both designed for a single color. If a monochrome printer's Developer Unit is used to replace a color printer's component during procurement, faults such as uneven development, severe background gray, and color shifts may occur; similarly, color Toner Cartridges cannot be used directly in monochrome models.

Ricoh IM C2010 IM C2510 Drum Units
III. Drum Unit and Fuser Unit: Differences Outweigh Interchangeability

While Drum Units may be interchangeable across certain brands and models, color printers demand higher charge sensitivity from the photosensitive layer, resulting in significant differences in lifespan and imaging parameters. Regarding Fuser Units, color printers require higher fusing temperature curves and uniform pressure to solidify multiple layers of toner, whereas monochrome Fuser Units have a relatively simple structure; the two should not be interchanged arbitrarily. To determine compatibility, one must rely on specific model codes, structural dimensions, and electrical parameters; brand alone is not a reliable indicator.

Photo Conductor Unit Compatible For Ricoh Aficio 1015/1018/1115/1811/1911/ 2015/2018/2020 Drum Unit
IV. Practical Recommendations for Purchasing Color and Black-and-White Copier Parts

It is recommended to precisely verify part models based on the model code and prioritize purchasing complete, matched sets: for color copiers, purchase the Transfer Belt Unit, four-color Toner Cartridge, and Developer Unit as a set; for black-and-white copiers, focus on verifying the parameters of the Drum Unit and Fuser Unit. Dongguan Aige Technology specializes in manufacturing complete sets of copier parts compatible with mainstream color and monochrome printers from brands such as Kyocera, Konica Minolta, Ricoh, and Canon. All products undergo in-machine testing, with dimensions, charge levels, and imaging parameters strictly aligned with OEM specifications. We offer flexible minimum order quantities and international shipping packaging.



Overall, the differences between color and monochrome copier parts-particularly in the Transfer Belt Unit, Toner Cartridge, Developer Unit, Drum Unit, and Fuser Unit-outweigh their similarities. When purchasing, be sure to verify the specific model and structural parameters. Dongguan Aige Technology can match the correct color or monochrome copier parts based on the list of machine models you provide. We welcome repair shops, leasing companies, and wholesalers worldwide to request samples and discuss bulk purchases.
